Additional Info

• What you will learn:
  • Engineering:
  • - Selection and connection of the components.
  • Math:
  • - appropriate sizing.
• Expected Time:

  From 5 to 10 hours

• Materials & Recycled Materials:
  • - Bearing 608 2rc c3
  • - 3D printer Leapfrog bolt
  • - 3D printer
  • - PLA material for printing
• Guide:
  • 1. Based on the selected bearing and its characteristics we can draw in a 3D modelling program our own toy model.
  • 2. Attached is a file spinnerSIC.stl, that can be downloaded.
  • 3. In the CURA software a .stl file is inserted and a model for G-code for the 3D printed is created.

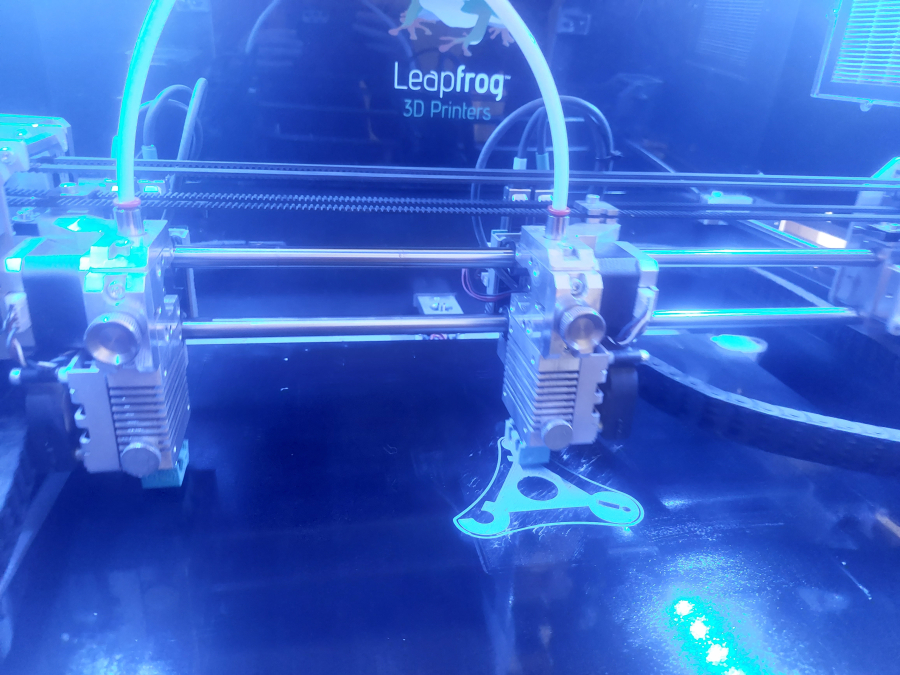

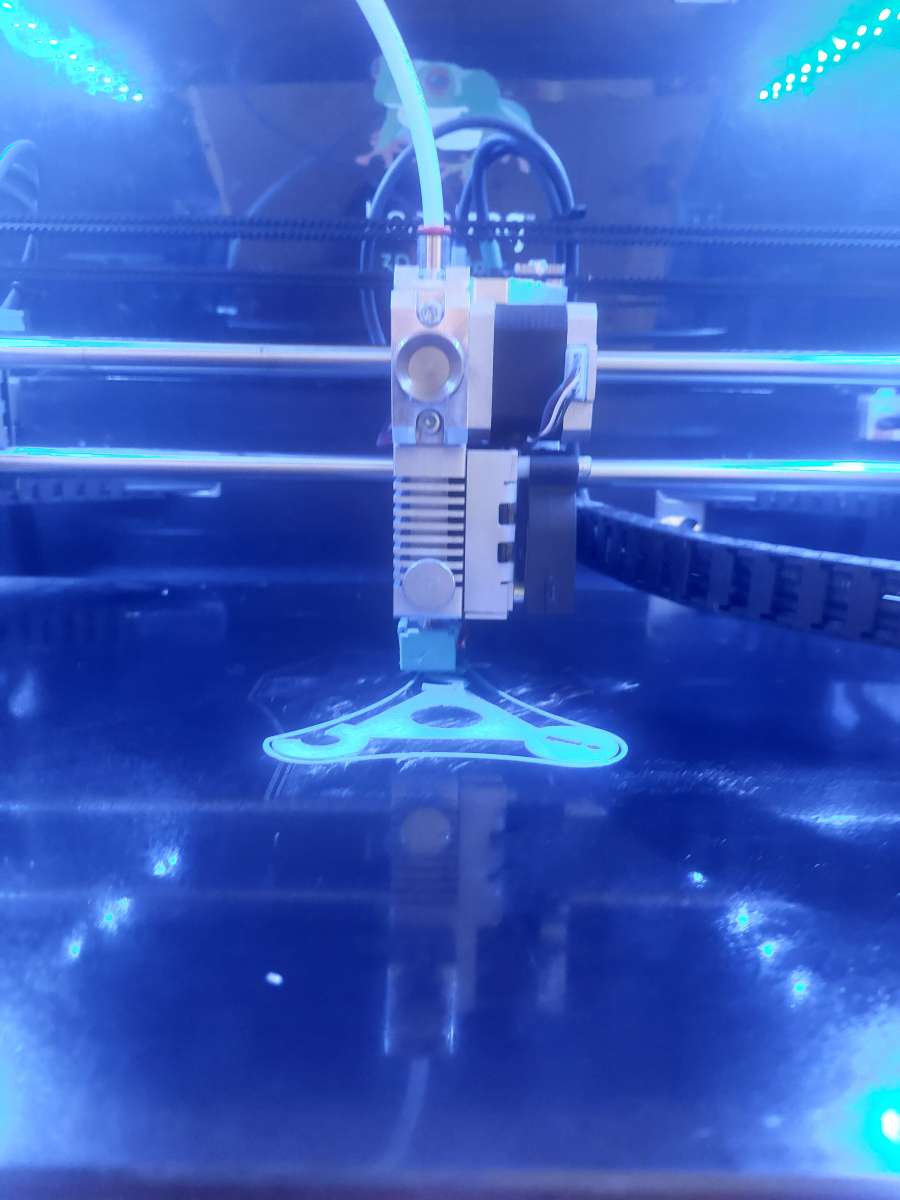

  • 4. The code is transferred to a 3D printer and the model is ready for to be made.

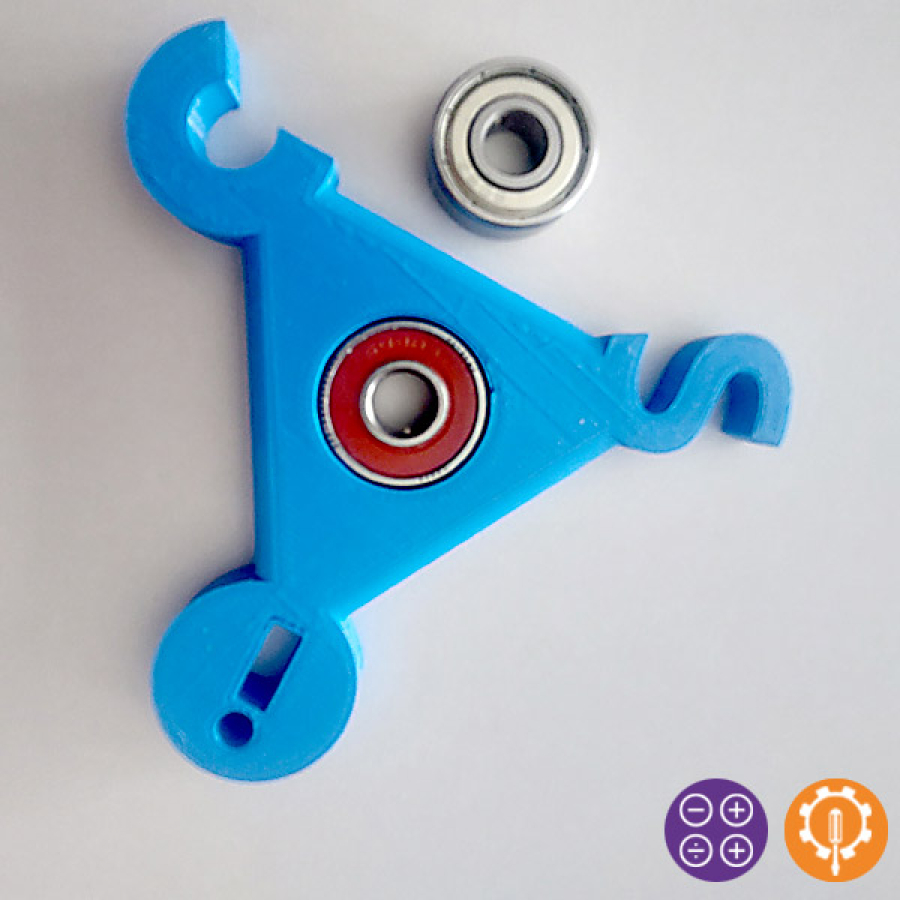

  • 5. At the end the bearing is inserted and the toy is ready for use.
• Further Steps:
  • Possible upgrade with more bearing elements and creating different shapes.
• External Links:
  • - 3D printer: https://support.lpfrg.com/support/solutions/articles/11000083079-spare-parts-list-leapfrog-bolt-pro-
  • - Bearing: https://www.electro-motors.eu/bearing-608-2rs-c3-extreme-codex-p5z3v3rlq2-p5359
• Software used in the project:
  • - STEP and STL files created using Onshape (https://www.onshape.com/en/)
  • - Slicing wit Ultimaker Cura (https://ultimaker.com/software/ultimaker-cura/)
• Difficulty level: Hard
• Developed By: SIC Lubljiana
